Szczegóły Produktu:
Zapłata:
|
Model: | SD13YE | Engine: | Cummins QSB6.7 |
---|---|---|---|
Operating weight (Ripper not included): | 12.8t | Rated power: | 97/2200kW/rpm |
Blade type: | 6 way blade | Track gauge: | 1780mm |
High Light: | shantui construction machinery,dozer construction equipment |

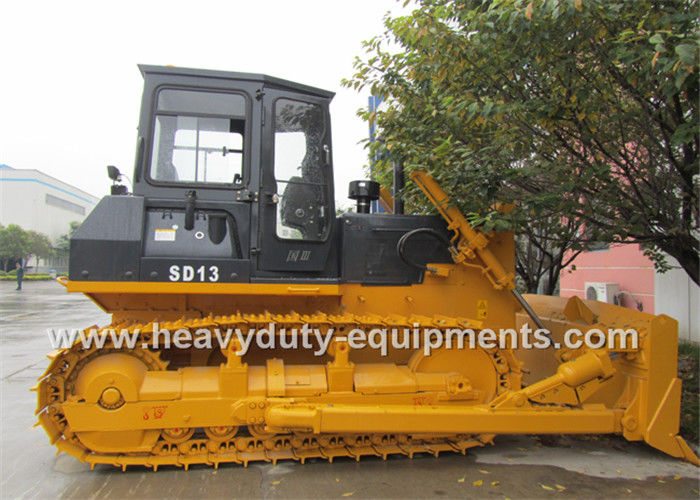

Shantui new model bulldozer SD13YE equipped with Cummins QSB6.7 engine
Specification:
ITEM | SD13YE | Engine | CUMMINS QSB6.7 |
L×W×H (Ripper not included) | 4924×3060×2988mm | Ripping depth of ripper | -- |
Operating weight (Ripper not included) | 12.8t | -- | |
Rated power | 97/2200kW/rpm | Lifting height of ripper | -- |
Grade ability | 30° | Number of carriers (each side) | 2 |
Blade type | 6 way blade | Number of track rollers (each side) | 7 |
Blade width | 3060mm | Track gauge | 1780mm |
Ground length and ground pressure | 2640-0.043mm/MPa | ||
Dozing capacity | 3.07m3 | Pitch | 190mm |
Forward speed | 0–10km/h | ||
Ma× drop below ground of blade | 460 mm | Reverse speed | 0–10km/h |
Lift height of blade | 1000 mm | ||
Ripper type | -- |
Description:
The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
Advantage:
1. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
2. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
3. The single control lever can control all blade actions;
4. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
5. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
